WHRD 1470 AM, Huntington WV

5 KW

Photos and information furnished by Warren Kunkle

Warren is an Assistant Chief Engineer at WOWK-TV who enjoys working on radio transmitters. He works for WOWK TV, a CBS affiliate in Huntington, WV. Be sure to visit their Web site, which features many interesting photos, information and links related to broadcast technology.

Accessed times since June 28, 2001.

Visit WHRD official website.

Fine Print:
All images are Copyrighted and are provided for your personal enjoyment. Use of these images for commercial purposes including their distribution on CD-ROM or any other media without permission of the artist/photographer is prohibited. Contact: Jim Hawkins

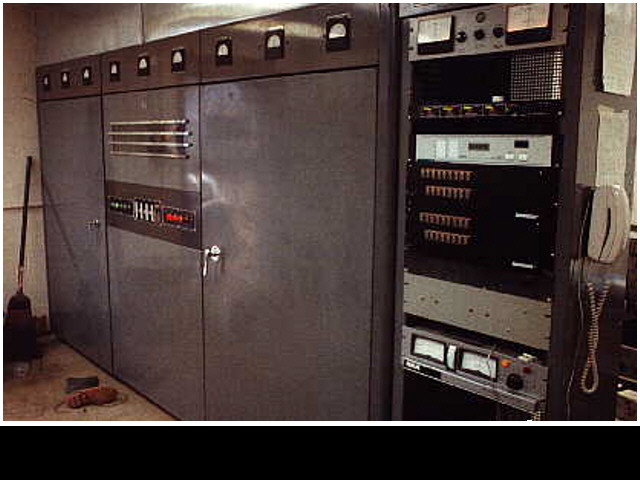

BC5 Gates 5KW Transmitter installed in 1992.
The Transmitter was manufactured in the 1950s.

Interior shot of audio driver and modulator stage.

BC5 Solid State rectifier assemblies

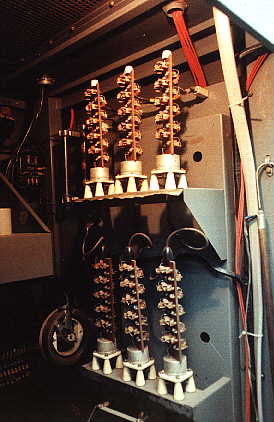

Interior shot displays the high voltage rectifiers. The originals were 8008 mercury tube rectifiers. This transmitter has been equipped with solid state rectifier assemblies, which plug directly into the original tube sockets. Otherwise, Whrd's transmitter has its original complement of tubes.

Oscillator - one 6V6
1st Buffer - one 807
2nd Buffer - one 813
RF Driver - two 810's
RF Power Amp - one 3X2500F3
1st Audio - two 6J7's
2nd Audio - two 807's
Audio Driver - four 845's
Modulator - two 3X2500F3's Bias Rectifier - two 8008's (Now solid state)
L. V. Rectifier - two 8008's (Now solid state)
H. V. Rectifier - six 8008's (Now solid state)

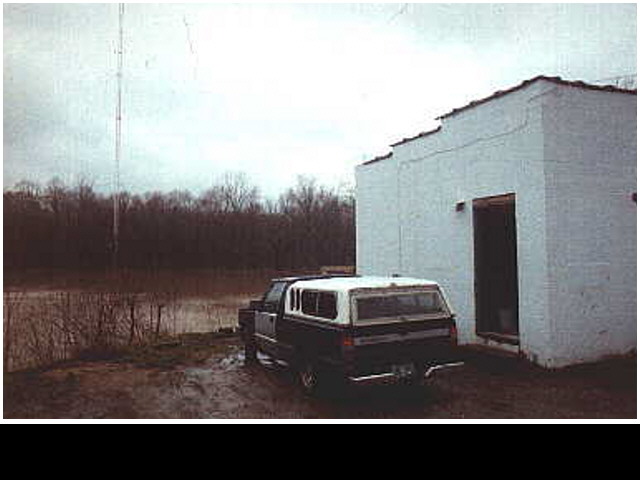

WHRD Transmitter Building

Warren Kunkle revealed to me that a local water pumping station is closed by the Corp of Engineers 4 to 6 weeks a year. During this time, the tower is often covered with up to 10 feet of water. The radiation characteristics of the antenna of been only minimally affected and no major component failures have occurred which is fortunate, because the only way to the site is by boat during those times. The antenna base insulator is located 24 feet up the tower, along with the ATU to enable operation during flooding conditions.
